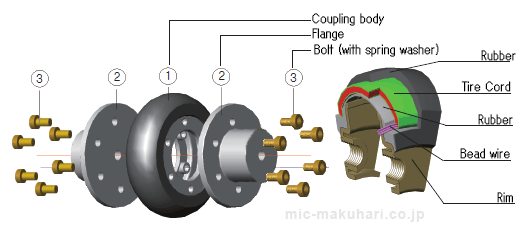

Structure and specifications for JAC series

Structure and specifications for JAC series

Structure and specifications for JAC series

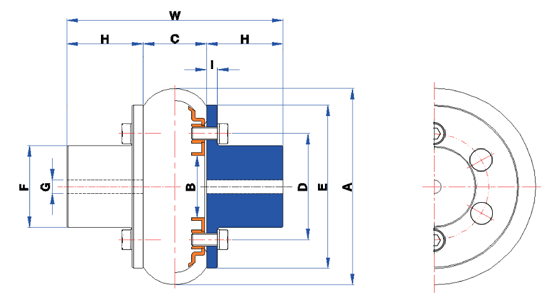

Dimensions and specifications

Dimensions and specifications

Model K01 assembly with rim

Model K01 assembly with rim
Parts
Number
Coupling Dimension Bolt Dimension
(with hexagon socket head bolt)
Flange Dimension Over
all
Width
Allow
able
Torque
GD2 Max.
Revo
lution
Outer
Dia
meter
Inner
Dia
meter
Width
(in half
assem
bled
state)
Pitch
Circle
Dia
meter
Num
ber
Nominal
Dia
meter
x Pitch
Len
gth
under
Neck
Outer
Dia
meter
Boss
Dia
meter
Shaft
Hole
Diameter: G
Width Thi
ckn
ess
A
(mm)
B C D n d×p l E F Max. Min. Be
fore
Ship
ment
H I W (kg
-m)
(kgf
-m2)
(rpm)
JAC-
100-K01
100 35 37 50 2
×6
6
×1.0
20 82 32 18 8 6 28 6 93 5 34.9 5000
JAC-
120-K01
120 45 39 65 2
×6
8
×1.25
20 106 40 22 18 14 36 6 111 10 78.9 4500
JAC-
140-K01
140 52 45 75 2
×6
10
×1.5
25 118 45 25 20 16 40 7 125 15 164.6 4200
JAC-
160-K01
160 62 51 85 2
×6
10
×1.5
25 132 50 28 24 20 45 8 141 22 301.8 4000
JAC-
185-K01
185 74 58 100 2
×6
12
×1.75
30 154 64 36 28 24 50 10 158 30 568.4 3600
JAC-
220-K01
220 84 67 112 2
×6
12
×1.75
30 180 80 45 34 30 56 12 179 50 1293.6 3200
JAC-
265-K01
265 112 82 140 2
×6
12
×1.75
35 214 100 56 40 36 71 14 224 100 3802.4 2600
JAC-
340-K01
340 142 106 180 2
×6
16
×2.0
45 272 125 71 44 40 90 18 286 165 12544 2100
JAC-
445-K01
445 190 139 236 2
×6
18
×2.5
56 344 160 90 54 50 112 25 363 500 44688 1600
JAC-
550-K01
550 230 173 290 2
×8
24
×3.0
71 430 232 150 64 60 150 26 473 1000 125440 1200
JAC-
700-K01
700 310 220 370 2
×12
24
×3.0
71 544 310 200 84 80 200 26 620 2000 356720 1000

Model L01 assembly with rim

Model L01 assembly with rim
Parts
Number
Coupling Dimension Bolt Dimension
(with hexagon socket head bolt)
Flange Dimension Over
all
Width
Allow
able
Torque
GD2 Max.
Revo
lution
Outer
Dia
meter
Inner
Dia
meter
Width
(in half
assem
bled
state)
Pitch
Circle
Dia
meter
Num
ber
Nominal
Dia
meter
x Pitch
Len
gth
under
Neck
Outer
Dia
meter
Boss
Dia
meter
Shaft
Hole
Diameter: G
Width Thi
ckn
ess
A
(mm)
B C D n d×p l E F Max. Min. Be
fore
Ship
ment
H I W (kg
-m)
(kgf
-m2)
(rpm)
JAC-
100-L01
100 35 37 50 2
×6
6
×1.0
20 82 36 22 8 6 28 6 93 5 34.9 5000
JAC-
120-L01
120 45 39 65 2
×6
8
×1.25
20 106 48 28 10 8 35 6 109 10 78.9 4500
JAC-
140-L01
140 52 45 75 2
×6
10
×1.5
25 118 55 35 24 20 44 7 133 15 164.6 4200
JAC-
160-L01
160 62 51 85 2
×6
10
×1.5
25 132 65 42 24 20 53 8 157 22 301.8 4000
JAC-
185-L01
185 74 58 100 2
×6
12
×1.75
30 154 77 48 34 30 60 10 178 30 568.4 3600
JAC-
220-L01
220 84 67 112 2
×6
12
×1.75
30 180 89 55 34 30 69 12 205 50 1293.6 3200
JAC-
265-L01
265 112 82 140 2
×6
12
×1.75
35 214 117 75 40 36 94 14 270 100 3802.4 2600
JAC-
340-L01
340 142 106 180 2
×6
16
×2.0
45 272 150 95 44 40 120 18 346 165 12544 2100
JAC-
445-L01
445 190 139 236 2
×6
18
×2.5
56 344 202 128 54 50 160 25 459 500 44688 1600
JAC-
550-L01
550 230 173 290 2
×8
24
×3.0
70 430 246 170 64 60 170 26 513 1000 125440 1200
JAC-
700-L01
700 310 220 370 2
×12
24
×3.0
70 544 326 220 84 80 220 26 620 2000 356720 1000

Model M01 assembly with rim (Semi-standard assembly – Make-to-order product)

Model M01 assembly with rim
Parts
Number
Coupling Dimension Bolt Dimension
(with hexagon socket head bolt)
Flange Dimension Over
all
Width
Allow
able
Torque
GD2 Max.
Revo
lution
Outer
Dia
meter
Inner
Dia
meter
Width
(in half
assem
bled
state)
Pitch
Circle
Dia
meter
Num
ber
Nominal
Dia
meter
x Pitch
Len
gth
under
Neck
Outer
Dia
meter
Boss
Dia
meter
Shaft
Hole
Diameter: G
Width Thi
ckn
ess
A B C D n d×p l E F Max. Min. Be
fore
Ship
ment
H J I W (kg
-m)
(kgf
-m2)
(rpm)
JAC-
100-M01
100 35 37 50 2
×6
6
×1.0
20 82 34 20 8 6 11 25 6 59 5 34.9 5000
JAC-
120-M01
120 45 39 65 2
×6
8
×1.25
20 106 44 26 10 8 18 32 6 75 10 78.9 4500
JAC-
140-M01
140 52 45 75 2
×6
10
×1.5
25 118 51 30 14 10 21 37 7 87 15 164.6 4200
JAC-
160-M01
160 62 51 85 2
×6
10
×1.5
25 132 61 36 18 14 27 45 8 105 22 301.8 4000
JAC-
185-M01
185 74 58 100 2
×6
12
×1.75
30 154 72 44 24 20 34 55 10 126 30 568.4 3600
JAC-
220-M01
220 84 67 112 2
×6
12
×1.75
30 180 82 50 30 26 36 60 12 139 50 1293.6 3200
JAC-
265-M01
265 112 82 140 2
×6
12
×1.75
35 214 110 66 40 36 50 80 14 182 100 3802.4 2600
JAC-
340-M01
340 142 106 180 2
×6
16
×2.0
45 272 140 85 44 40 61 100 18 228 165 12544 2100
JAC-
445-M01
445 190 139 236 2
×6
18
×2.5
50 344 188 115 54 50 69 120 25 277 500 44688 1600
JAC-
550-M01
550 230 173 290 2
×8
24
×3.0
71 430 228 160 64 60 97 160 26 367 1000 125440 1200
JAC-
700-M01
700 310 220 370 2
×12
24
×3.0
71 544 308 210 84 80 182 210 26 476 2000 356720 1000

Model P01 assembly with rim (Semi-standard assembly – Make-to-order product)

Model P01 assembly with rim
Parts
Number
Coupling Dimension Bolt Dimension
(with hexagon socket head bolt)
Flange Dimension Over
all
Width
Allow
able
Torque
GD2 Max.
Revo
lution
Outer
Dia
meter
Inner
Dia
meter
Width
(in half
assem
bled
state)
Pitch
Circle
Dia
meter
Num
ber
Nominal
Dia
meter
x Pitch
Len
gth
under
Neck
Outer
Dia
meter
Boss
Dia
meter
Shaft
Hole
Diameter: G
Width Thi
ckn
ess
A
(mm)
B C D n d×p l E F Max. Min. Be
fore
Ship
ment
H I W (kg
-m)
(kgf
-m2)
(rpm)
JAC-
100-P01
100 35 37 50 2
×6
6
×1.0
20 82 36 22 8 6 18 6 73 5 34.9 5000
JAC-
120-P01
120 45 39 65 2
×6
8
×1.25
20 106 48 28 10 8 23 6 85 10 78.9 4500
JAC-
140-P01
140 52 45 75 2
×6
10
×1.5
25 118 55 35 14 10 28 7 101 15 164.6 4200
JAC-
160-P01
160 62 51 85 2
×6
10
×1.5
25 132 65 42 18 14 34 8 119 22 301.8 4000
JAC-
185-P01
185 74 58 100 2
×6
12
×1.75
30 154 77 48 24 20 40 10 138 30 568.4 3600
JAC-
220-P01
220 84 67 112 2
×6
12
×1.75
30 180 89 55 30 26 44 12 155 50 1293.6 3200
JAC-
265-P01
265 112 82 140 2
×6
12
×1.75
35 214 117 75 40 36 60 14 202 100 3802.4 2600
JAC-
340-P01
340 142 106 180 2
×6
16
×2.0
45 272 150 95 44 40 76 18 258 165 12544 2100
JAC-
445-P01
445 190 139 236 2
×6
18
×2.5
56 344 202 128 54 50 103 25 345 500 44688 1600
JAC-
550-P01
550 230 173 290 2
×8
24
×3.0
7O 430 246 170 64 60 136 26 445 1000 125440 1200
JAC-
700-P01
700 310 220 370 2
×12
24
×3.0
70 544 326 220 84 80 176 26 572 2000 356720 1000
